S.C.R. MPT 3 Phase
รายละเอียด

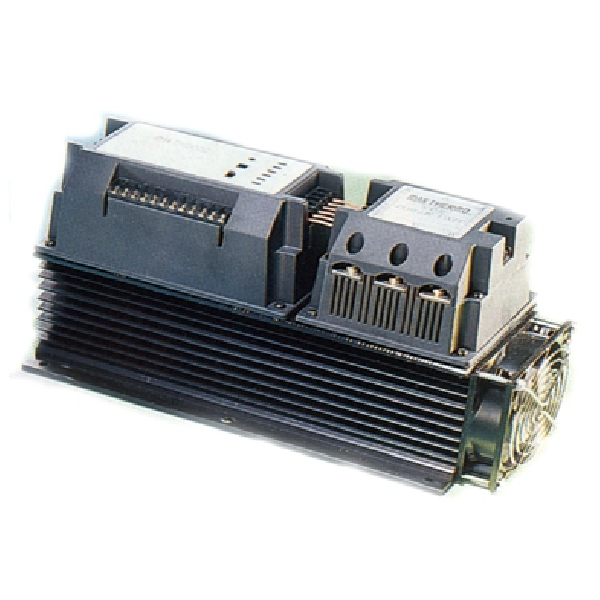

MAXTHERMO S.C.R. UNIT (3 Phase)
MODEL NO.
|
MPT-0302
|
MPT-0502
|
MPT-0702
|
MPT-1002
|
MPT-1202
|
| W x L x H (mm.) (incl. heat sink) |
283x126x115 |
318x126x170 |
330x140x200 |
| Net Weight (g) (incl. heat sink) |
Approx. 1900g |
Approx. 4400g |
Approx. 6600g |
| Load Current Rating |
30A |
50A |
70A |
100A |
120A |
| Load Voltage (V) |
150~260V |
| Auxiliary Power |
220VAC ±10% |
| Min. Load Current |
0.6A |
| Off State Leakage Current |
15mA (Max.) |
| Power Consumption |
5W (Max.) |
| Frequency Range |
50Hz / 60Hz (option) |
| Control Type |
DCA(4~20mA), DCV(0~5V, 1~5V, 0~10V) |
| Input Resistance |
DCA (250Ω) / DCV (4.70Ω or 10KΩ) |
| Isolation Voltage |
2500VAC (1 min. input & output to ground) |
| Alarm |
2.0A |
| Notation |
Fuse is separated in all models.
A fan is attached when SCR is 50A up. |
| Special Features |
1. MPT is best for using in IR heating, high speed heating and slightly light heating.
2. MPT is suitable for using in requirement of multi-protected connection. |
