S.C.R. MPS 1 Phase
รายละเอียด

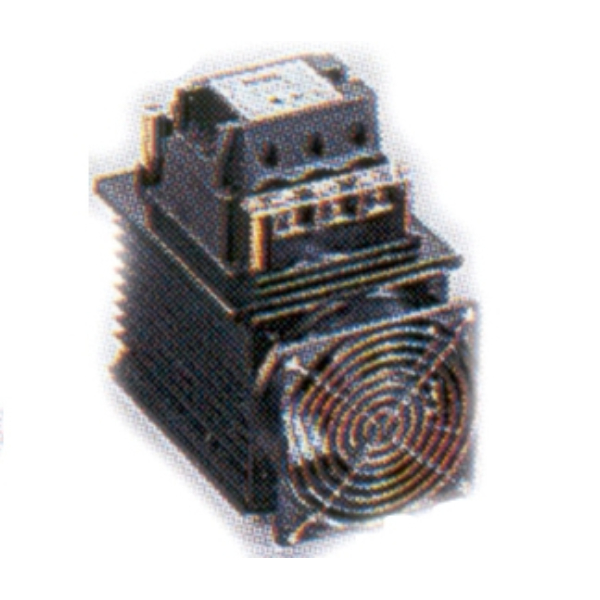

MAXTHERMO S.C.R. UNIT (Single phase)
MODEL NO.
|
MPS-0302L
|
MPS-0502L
|
MPS-0502L
|
MPS-1002
|
| W x L x H (mm.) (incl. heat sink) |
202x126x115mm |
175x126x170mm |
| Net Weight (g) (incl. heat sink |
Approx. 1400g |
Approx. 2400g |
| Load Current Rating |
30A |
50A |
70A |
100A |
| Load Voltage (V) |
150~260V |
| Auxiliary Power |
150~260V |
| Min. Load Current |
88~264V (50Hz / 60Hz) |
| Off State Leakage Current |
8mA (R.C. Filter)
|
| Power Consumption |
3.2W Max. |
| Frequency Range |
50Hz/60Hz ±5% |
| Control Type |
DCA(4~20mA, 0~20mA), DCV(0~5V, 2~10V, 0~10V) |
| Input Resistance |
DCA (250Ω), DCV (4.70Ω or 10KΩ) |
| Isolation Voltage |
2000VAC (1 min. input & output to ground) |
| Alarm |
No |
Notation
|
Fuse is installed in the unit when SCR is under 70A, but it is separated when SCR is 100A up.
A fan is attached when SCR is 100A up. |
