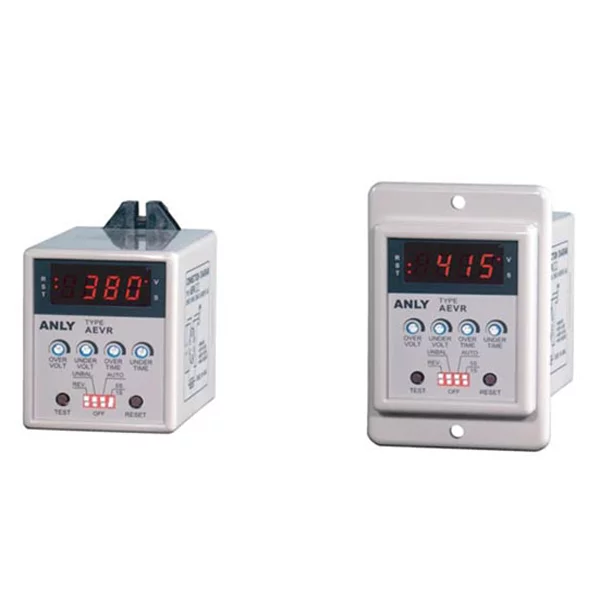

Multi-function Digital Voltage Controller Model : AEVR

1/1

Multi-function Digital Voltage Controller Model : AEVR

รายละเอียด

Operating Voltage 100 ~ 240 VAC
Allow Operating Volt. Range 85-110% of rated operating voltage
Rated Frequency 50/60 Hz
Contact Rating 250 VAC  5A (resistive load)
Detecting method and range Detect 3 phase supply voltage
P type: 77~143VAC,   L type: 160~300VAC,   H type: 277~519VAC
Reset Time 1 S  /  5 S
Power Consumption Approx. 3.3 VA
Life Mechanical : 5,000,000 times / Electrical : 100,000 times
Ambient Temperature -10~+50°C
Ambient Humidity Max 85% RH
Weight Approx. 135g

ลักษณะเฉพาะ

  • Digital 3-phase voltage and fault detector
  • Over voltage detection -0.1 sec ~ 10 sec adjustable tripping delay
  • Under voltage detection -0.1 sec ~ 10 sec adjustable tripping delay
  • Phase-loss detection -2 sec fixed tripping delay
  • Phase sequence detection -0.5 sec fixed tripping day
  • 3-phase voltage balance (±5%) detection -3 sec fixed tripping delay
  • Phase-loss detection with active motor
  • Manual / Auto Reset selectable -1 sec or 5 sec auto reset tripping delay
