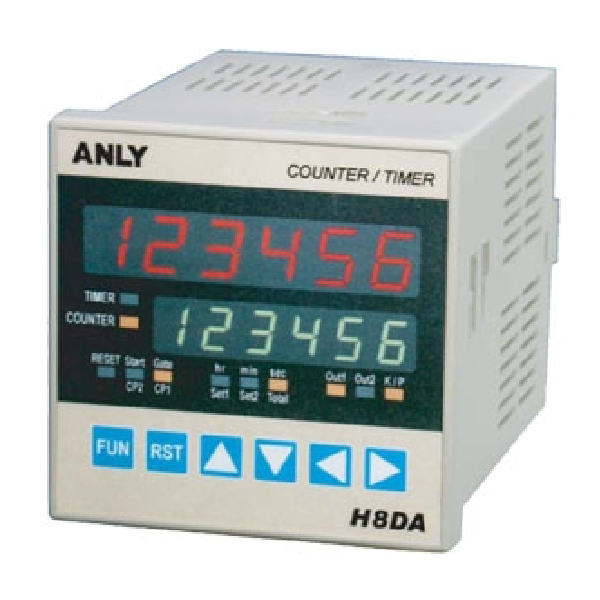

Multi-function Digital Timer/Counter Model : H8DA
รายละเอียด
| Operating Voltage |
24~240 VAC / VDC |
| Allow Operating Volt. Range |
85-110% of rated operating voltage |
| Rated Frequency |
50/60 Hz |
| Contact Rating |
250 VAC 5A (resistive load) |
| Reset Time |
MAX 0.1S |
| Power Consumption |
Approx. 3.5 V |
| Life |
Mechanical : 5,000,000 times / Electrical : 100,000 times |
| Count Speed |
Max. 30, 1K, 5K or 10K cps |
| Ambient Temperature / Ambient Humidity |
-10~+50°C / Max 85% RH |
| Weight |
Approx. 2 |
ลักษณะเฉพาะ
– Counter or Timer function
– Scroll -through menu for all parameters
– Proximity and photoelectric switches compatible
– High-speed response allows 10K counts per second
– Online change of set value possible
– 4 levels of key protection provided
– 3 user selectable mode : Count-Up, Count-Down and Count-Up/Down
– Memory function available
– UL, C-UL recognized and CE certified
