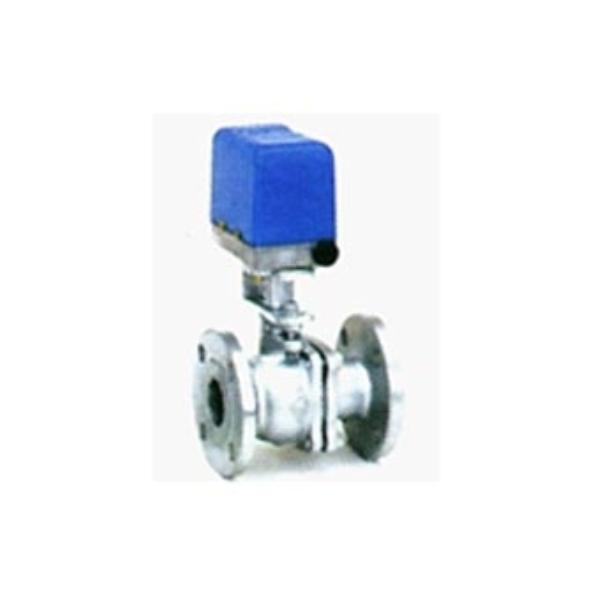

MK7 สำหรับงานทั่วไปและเครื่องปรับอากาศ
รายละเอียด
– MK7 actuator is fit assembling with 2 way / 3 way ball valves
– Maerial of ball valve can be FC20, SUS304 or SUS316
– Acting of ball 7 seconds from close to open position
– Pressure range from 0 to 10 kg*f/cm2

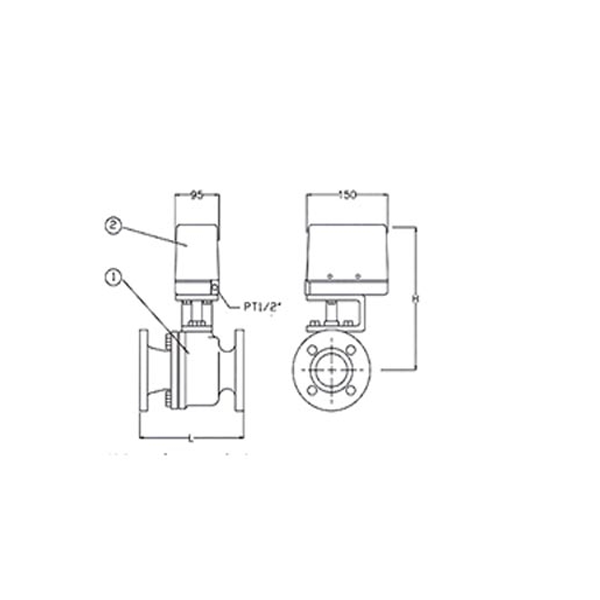

ขนาด
Model
|
Size
|
JIS 10K
|
L
(mm)
|
H
(mm)
|
Weight
(Kg)
|
| MK7-40F |
40A |
FF |
160 |
240 |
8.5 |
| MK7-50F |
50A |
FF |
188 |
240 |
10.5 |
Valve Performance Chart
Fluid
|
Air, Oil and Water |
Fluid Temp.
|
-5oC ~ 120oC |
Max. Pressure Diff.
|
10 Kg*f/cm2 |
Max. Pressure
|
10 Kg*f/cm2 |
Test Pressure
|
20 Kg*f/cm2 |
Fluid direction
|
No limitation |
Rated Voltage
|
100, 110VAC 50/60Hz
200, 220VAC 50/60Hz |
Power consumption
|
80VA |
Acting time
|
7 / seconds (60Hz)
7 / seconds (60Hz) |
Ambient Temp.
|
0 ~ 50oC |
Installation
|
Vertical ± 15o |
Insulation
|
Indoor / Outdoor |
