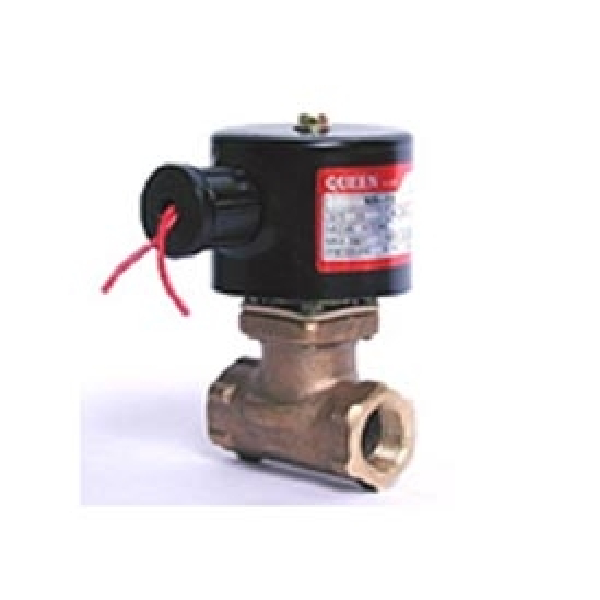

MK-15S, 20S, 25S สำหรับงานในอาคาร
รายละเอียด
– Suitable for steam, air, vacuum, inert gases, water, and oil (below 50cst)
– Kick pilot operated, wide operating pressure range from 10 Torr to 10kg*f/cm2, fast response, long life constructive device.
– Can be moounted in vertical position or vertical ±15 is allowed.
– Fluid temperature from -10oC (non-freezing) to 180oC.
Operating Pressure (kg*f/cm2
|
Model
|
Connection
|
Orifice (mm)
|
CVvalu
|
Steam
|
Water
|
Oil(Below 50cst)
|
Max.Media Temp.
|
Power Consumption (VA)
|
| MK15S |
PT ½” |
14 |
3.0 |
0-10 |
0-8 |
0-7 |
180oC |
26 |
| MK20S |
PT ¾” |
19 |
4.9 |
79 |
| MK25S |
PT 1” |
25 |
6.2 |
79 |
มีรุ่น MK-10S ขนาดเกลียว PT3/8” ด้วย

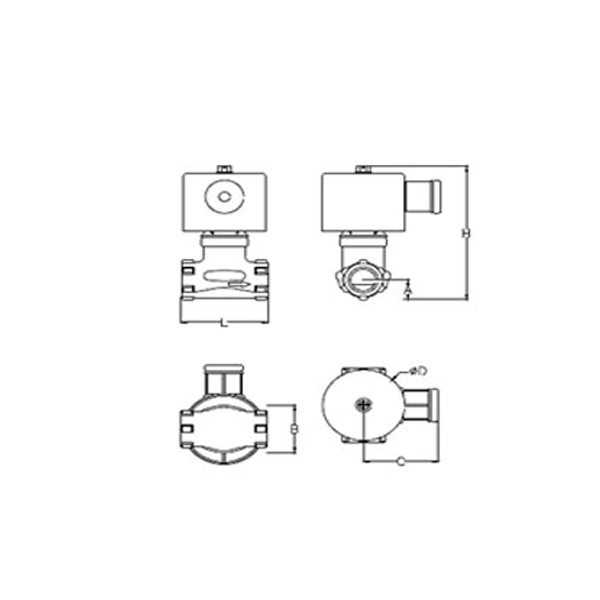

ขนาด (โดยประมาณ)
| Model |
L (mm) |
H (mm) |
A (mm) |
B (mm) |
C (mm) |
Ø D (mm) |
| MK-15S |
63 |
114 |
17 |
30 |
56 |
62 |
| MK-20S |
74 |
122 |
19 |
33 |
| MK-25S |
88 |
127 |
24 |
41 |
