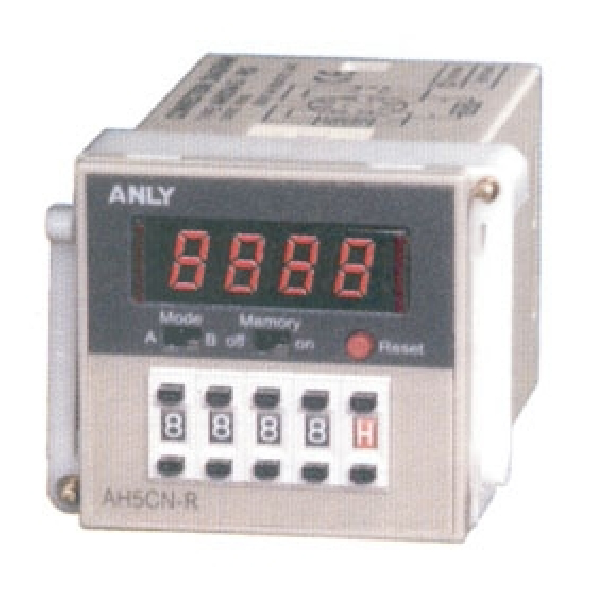

Digital TimerModel : AH5CN-R
รายละเอียด
| Operating Voltage |
100 ~ 240 VAC |
| Allow Operating Volt. Range |
85-110% of rated operating voltage |
| Rated Frequency |
50/60 Hz |
| Contact Rating |
250 VAC 5A (resistive load) |
| Reset Time |
MAX 0.1S |
| Power Consumption |
Approx. 2.5 VA |
| Life |
Mechanical : 5,000,000 times / Electrical : 100,000 times |
| Ambient Temperature |
-10~+50°C |
| Ambient Humidity |
Max 85% RH |
| Weight |
Approx. 130g. |
ลักษณะเฉพาะ
– 7-segment display for clear display and effective monitoring
– Protection against power surge and high frequency interference
– Base-10 (99.99 sec ~ 99990 hour) and Base-60 (9 min 59 sec ~ 99 hour 59 min) time ranges available
– Memory switch allows users to enable or disable memory function
– Manual reset button on faceplate
– 2 modes selectable via slide switch : Mode A (2C) for DPDT time-limiting output contacts, and Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
– can be used as a “Hour Meter”
– External pause contact available on G type
– UL and CE certified
